- Size: 50
- Place of Origin: TAIAN
- Brand Name: SINOTRUK
- Model Number: TAZ9500
- Weight: 6000.000 kg

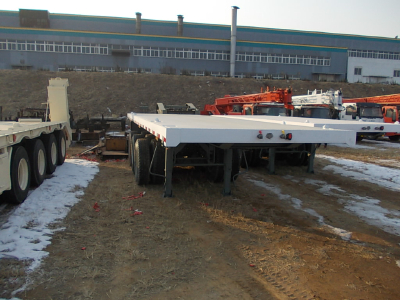

Model | TAZ9500 | ||
Overall Dimension
(mm) | Length(mm) | 12500mm | |
Width(mm) | 2500mm | ||
Height(mm) | 1610mm | ||
WEIGTH RATING(kg) | Kerb .Weight(kg) | 7500 kgs | |
Payload(kg) | 50000 kgs | ||
Axle | 3 Axles X13T,FUWA brand | ||
Tyre Type & Size X Numbers | 11.00R22.5 12pcs | ||
Brake System | Brake Chamber | 4 double and two single chambers | |
Receptacle | 7 ways(7 wire harness) | ||
Main Beam | I shape, 500mm Height, Q345B, the upper 14mm and the down plate is 16mm,middle plate is 8 mm | ||
Loading | 1 unit 40ft container or 2 units 20ft container | ||
Landing gear | Two-speed manual operating heavy duty landing gear | ||
Lights & Reflectors | Electrical equipment 24 Volt, in accordance with the road traffic regulations Electric connection type SAE 7 poles mounted on the front bearer. Rear lights with 3-chamber lights | ||
Others | 2 units spare tire support,1 set tool box. |
