Vehicle model

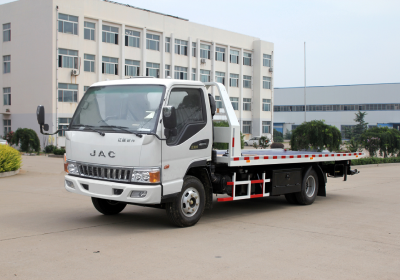

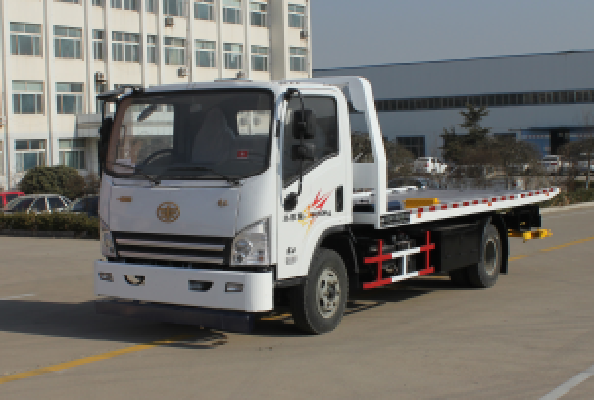

Wrecker Tow Truck

Overall dimensions (mm)

8440*2360*2520

GVW (kg)

Appro×9400

Fact loading capacity (kg)

4000

Mass in working order (kg)

Appro×4950

Max. Speed (km/h)

95

Chassis Description

Chassis Model

DFA1090LJ11D5

Cab

Standard cabin with Left hand drive

Color

Optional

Allowable person in cab

2/3

Wheel base (mm)

3815

Front/Rear track base (mm)

1940/1860

Front/Rear overhang (mm)

1245/2845

Number of axles

2

Axle

Front axle

3000

Rear axle

5300

Traction system

4*2

Operation control system

Power steering

Braking system

Full air

Electric system

24V

Transmission

5speed

Spring plate

8/13

Tire specification

8.25-16 14PR

Tire quantity

6 1

Engine Description

Engine model

CY4102-CE4F

Emission standard

Euro 2

Exhaust/output

3856/91

Horse power

124hp

Up-parts Description

Towing rating (kg)

4000

Standard Equipment

1524 mm (60") Cab to Axle steel body
4.6 ton (8,800 lbs) winch
Driver and passenger side manual controls
Wheel scoops
Fork receivers and 50 mm (2") frame forks
Safety chains

Working Condition:

1,Altitude: 0-4500m

2,Temperature: -350C~ 450C

3,Relative humidity: 80%

4,Wind force: ≤8 degree
