- Size: 60
- Place of Origin: CHINA
- Brand Name: SINOTRUK
- Model Number: ZZ4257N3247D
- Weight: 7000.000 kg
Cabin | Driving type 6x4
| |

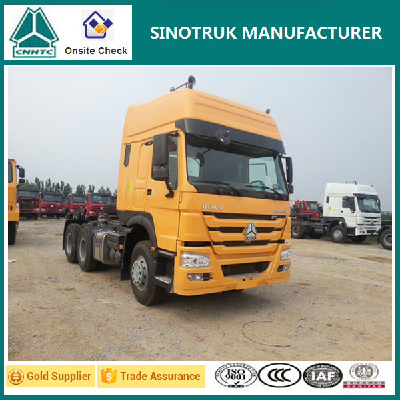

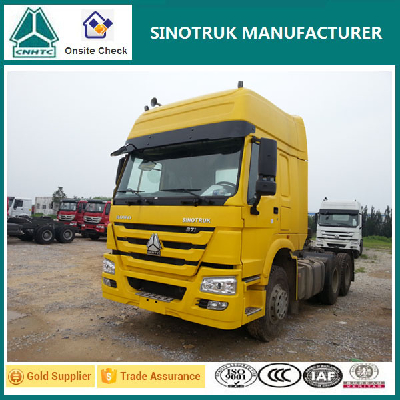

HOWO 79 Standard cab, with one bed, 70°hydraulically tillable to the front as attached photo for ref | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6900x2500x3600 |
Wheel base (mm) | 3200 1400 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 16/70 | |
Weight in KGS | Tare Weight | 9000 |
Towing weight | 40000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed(km/h) | 102 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo- charging and inter-cooling | |
Horse Power(HP) | 371HP | |
Emission standard | Euro Ⅱ |
Gearbox | HW19710, 10 forward & 2 reverse |
Clutch | Reinforced diaphragm clutch, diameter 430mm |
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance |
Fifth wheel | 3.5# |
Fuel tank (L) | 400L |
Tire | 12.00R22.5 tire , 11pieces |
Suspension | Front: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilize Rear: 14 leaf semi-elliptic leaf springs with bogie springs. |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
