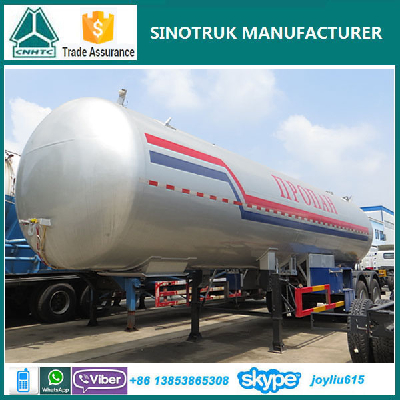

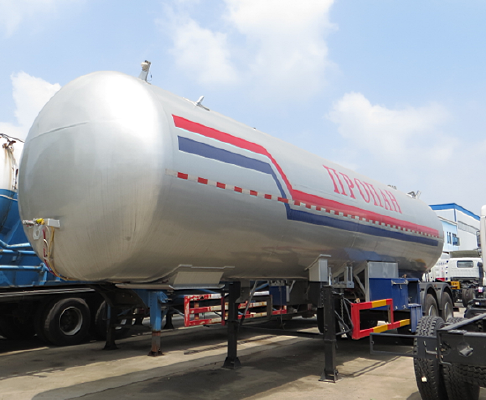

2016 hot sale lpg tank trailer

2016 hot sale lpg tank trailer

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 1000 Units per Month
  • Port: Port of China
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2011-01-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  11324*2500*3730mm
  • Place of Origin:  Shandong,China
  • Brand Name:  SINOTRUK
  • Model Number:  TAZ9400GYY
  • Weight: 12000.000 kg

 The volume can be produced as per customer's request.

Overall size:11324*2500*3730mm
Products LPG, Propane
Fluidproperty flammable
Design pressure 1.61MPa
Corrosion allowance 1.0mm
Major materials of bearing pressure
Tanker body : Q345R , 12mm
End plate : Q345R , 14mm
Design temperature: to 50℃
Main Beam : Q345B
Filling weight per volume:0.42/m3
Maximum filling weight:17 tons
Baffle inside the tank 14-off Aluminium
bolted plate , thickness is 5mm
Manhole : Quantity 1 ; On top
Safety Valve Quantity:Two
2 Location On the top of tanker ;
Liquidometer one unit
Axles :2 axles*13 TON FUWA Axles

Tyre: Triangle,425/65R22.5*8 pieces

As professional manufacturer,we can also produce as per clients' request.

  • Size:  11324*2500*3730mm
  • Place of Origin:  Shandong,China
  • Brand Name:  SINOTRUK
  • Model Number:  TAZ9400GYY
  • Weight: 12000.000 kg
